| Farbe | ANACONDA GREEN, GUNMETAL GREY |
|---|
| Größe | L, M, S, XL, XS |
|---|
| ARCHIVED | 0 |
|---|
| AXLE REAR | MERIDA EXPERT TR |
|---|
| AXLE REAR DESC | * including removeable lever, 6/4mm allen key |
|---|
| BATTERY | Bosch PowerTube 800 |
|---|
| BATTERY CHARGER | Bosch 4A Charger (220-240V) |
|---|
| BATTERY DESC | * 800Wh |
|---|
| BATTERY HOLDER | Bosch Guide Rail PT800 Horizontal |
|---|
| BATTERY LOCK | Abus Key |
|---|
| BD BOTTOM BRACKET DROPS MM | 12 |
|---|
| BELL | Alloy |
|---|
| BOTTLE | CH-MDE-MINI(2) |
|---|
| BRAKE FRONT | Shimano XT |
|---|
| BRAKE FRONT DESC | * 4 piston |
|---|
| BRAKE REAR | Shimano XT |
|---|
| BRAKE REAR DESC | * 4 piston |
|---|
| CARTON | A5 [ebike] fully |
|---|
| CHAIN | Shimano LG500 |
|---|
| CHAINWHEEL | FSA 1x Alloy Spider + Mega Tooth steel chain ring |
|---|
| CHAINWHEEL DESC | * 36 teeth |
|---|
| CHARGER ADAPTER | Bosch Charger Power Cable Europe |
|---|
| COMPRESSOR | FSA Star Nut |
|---|
| CRANK | FSA CK-220 wide E-Bike Forged Crankset |
|---|
| CRANK DESC | * 160mm for all sizes |
|---|
| CS CHAIN STAYS MM | 435 |
|---|
| DEALER-BASE-PRICE | 41137100 |
|---|
| DECAL | under coating |
|---|
| DERAILLEUR REAR | Shimano XT LG |
|---|
| DISPLAY | Bosch Purion 400 |
|---|
| DRIVE UNIT | Bosch Performance Line CX |
|---|
| DRIVE UNIT COVER | CR-038 PC bottom cover |
|---|
| ELECTRIC WIRE | Bosch Cable Battery 400mm (Taped) |
|---|
| ESHIFT PARTS 1 | ADA-001 |
|---|
| ESHIFT PARTS 2 | ADA-002 |
|---|
| ESHIFT PARTS 3 | CR-039 charging port cover |
|---|
| FENDER | RF-001 mini fender |
|---|
| FL FORK LENGTHS MM | 600 |
|---|
| FORK | Rock Shox Zeb Ultimate eMTB |
|---|
| FORK DESC | * Air
* 180mm suspension travel
* Tapered
* 44mm fork offset
* 29×2.6" max wheelsize |
|---|
| FRAME | eONE-EIGHTY LITE |
|---|
| FRAME DESC | * material: Aluminum
* 180mm suspension travel
* 29” x 2,6” max. wheelsize
* 148x12mm axle standard
* intube
* |
|---|
| FRAME TYPE | Fullsuspension |
|---|
| FREEWHEEL | Shimano LG400 |
|---|
| FREEWHEEL DESC | * 11-50 teeth
* 11 speed |
|---|
| GEO ID | 4549, 4550, 4551, 4552, 4553 |
|---|
| GRIP | MERIDA EXPERT TR |
|---|
| HANDLEBAR | MERIDA EXPERT eTR |
|---|
| HANDLEBAR DESC | * 780mm width |
|---|
| HANDLEBAR STEM | MERIDA EXPERT eTR II |
|---|
| HANDLEBAR STEM DESC | * material: aluminium
* 35mm diameter
* 0° stem angle
* Supernova mount
* 40 mm all sizes |
|---|
| HANDLEBAR STEM SIZE | 40 mm all sizes |
|---|
| HARDWARE | stainless |
|---|
| HEADSET | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
|---|
| HT HEAD TUBE LENGTHS MM | 110, 115, 120, 125, 130 |
|---|
| HTA HEAD TUBE ANGLES DEG | 64.5 |
|---|
| INNER TUBE | Front Lite-29×2.2-2.5, Rear Lite-27,5×2.2-2.5 |
|---|
| KATEGORIE | E-Fully |
|---|
| LIGHT FRONT | Lezyne Hekto StVZO E350+ Reverse |
|---|
| LIGHT FRONT DESC | * reverse MERIDA Custom Mount |
|---|
| LIGHT REAR | USB REAR Light CG-214RG |
|---|
| LOCAL PREVIEW | 0 |
|---|
| MANUAL | MERIDA eBike Manual |
|---|
| MOTOR UNIT | MERIDA Custom Battery Cover w/ Fidlock |
|---|

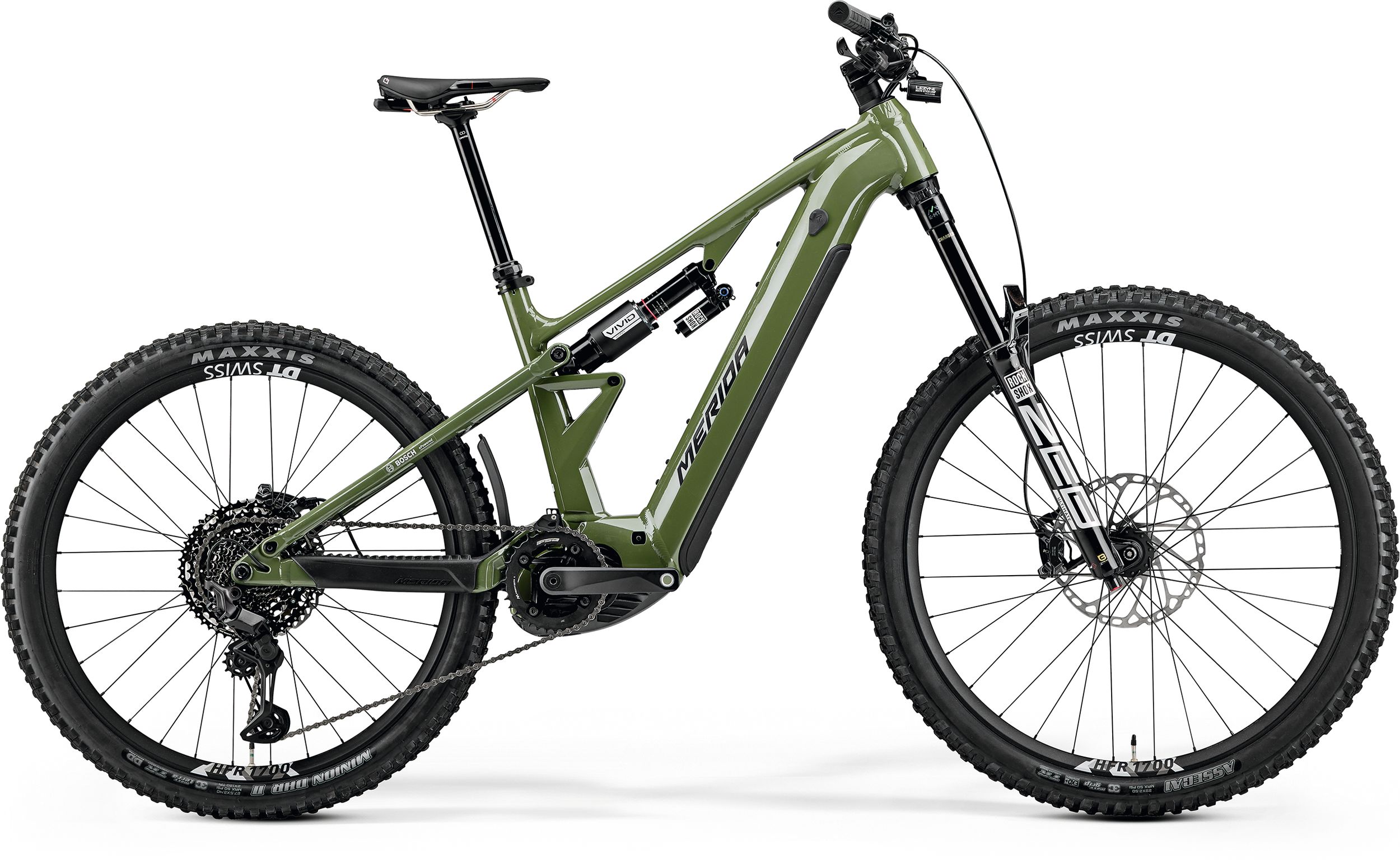

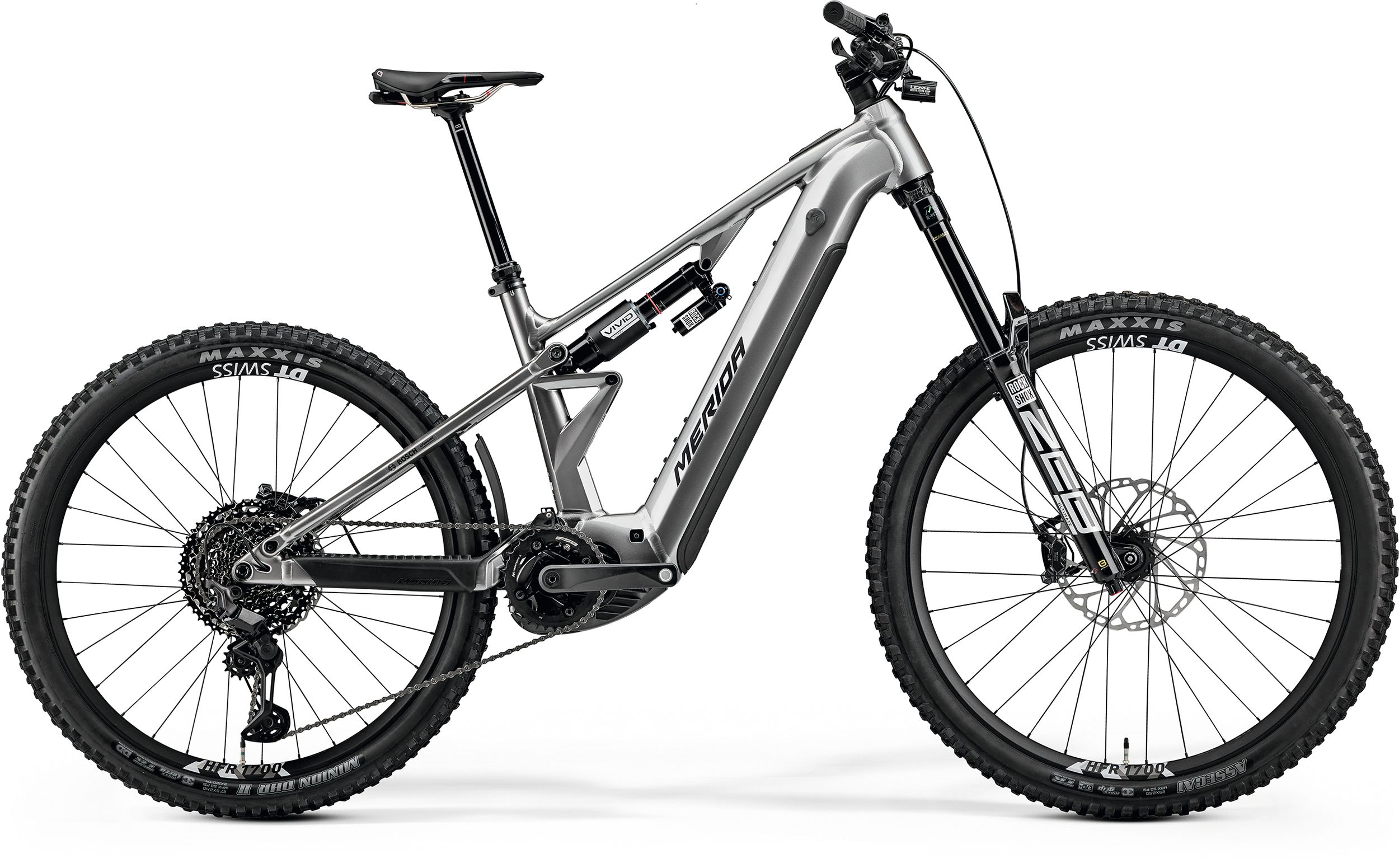

| NAME | eONE-EIGHTY 900 |
|---|
| PACKING | 95% |
|---|
| PAINTING | frame |
|---|
| PEDAL | VP 532 |
|---|
| PERMITTED MAX WEIGHT | 140 kg |
|---|
| POWER PUSH BUTTON | Bosch System Controller |
|---|
| PROTECTOR 1 | CSP-104 |
|---|
| R REACHS MM | 415, 435, 460, 485, 505 |
|---|
| RANK | 29000 |
|---|
| REF ID | 2026_eONE-EIGHTY_900_en |
|---|
| REF LANG | en |
|---|
| REFLECTOR | DIN |
|---|
| ROTOR FRONT | Shimano RT66 |
|---|
| ROTOR FRONT DESC | * 220 mm |
|---|
| ROTOR REAR | Shimano RT66 |
|---|
| ROTOR REAR DESC | * 203 mm |
|---|
| S STACKS MM | 652, 657, 661, 666, 670 |
|---|
| SADDLE | Proxim Nembo Tirox |
|---|
| SADDLE DESC | * V-mount adapter
* incl. MERIDA minitool |
|---|
| SATELLITE CHARGING PORT | Bosch Cable PowerTube Charging Socket 350mm |
|---|
| SEAT CLAMP | MERIDA EXPERT |
|---|
| SEAT POST | MERIDA TEAM TR II |
|---|
| SEAT POST DESC | * 34.9mm diameter
* 0mm setback
* SHORT, MID, LONG and XLONG 30-230mm travel seatpost
* XSHORT 30-200mm travel seatpost |
|---|
| SHIFTER CLAMP FRONT | Bosch clamp and screw for the Display |
|---|
| SHIFTER CLAMP REAR | JAGWIRE FLEX-SL:CP |
|---|
| SHIFTER FRONT | Shimano SL -MT500-IL |
|---|
| SHIFTER REAR | Shimano XT |
|---|
| SHOCK | Rock Shox Vivid Ultimate |
|---|
| SHOCK DESC | * platform |
|---|
| SPACER | 2*10mm, 1*2.5mm |
|---|
| SPEED SENSOR | Bosch Speedsensor Cable Slim 815mm |
|---|
| ST SEAT TUBES MM | 400, 410, 425, 445, 465 |
|---|
| STA SEAT TUBE ANGLE DEG | 78.5 |
|---|
| STATUS | 1 |
|---|
| STR STACK TO REACH RATIO PC | 1.33, 1.37, 1.44, 1.51, 1.57 |
|---|
| SWITCH | Bosch Mini Remote |
|---|
| TIRE FRONT | Maxxis Assegai |
|---|
| TIRE FRONT DESC | * 29×2.5 "
* fold
* TR EXO+ 3C MaxxGrip |
|---|
| TIRE REAR | Maxxis Minion DHR II |
|---|
| TIRE REAR DESC | * 27.5×2.4 "
* fold
* 3C DD TR MaxxTerra |
|---|
| TIRE SIZE | 29/27.5" |
|---|
| TT TOP TUBES MM | 556, 577, 604, 630, 652 |
|---|
| UVP | 7199.00 |
|---|
| VAR GEO PRICE INFO | UVP inkl. MwSt. |
|---|
| WB WHEEL BASE MM | 1195, 1218, 1245, 1272, 1294 |
|---|
| WEIGHT | 27.0 |
|---|
| WEIGHT DESC | weighed at frame size M |
|---|
| WHEELSET | DT Swiss HF 1700 |
|---|
| WHEELSET DESC | * 110x15mm width front hub
* 148x12mm width rear hub
* 30mm inner width
* 6-Bolt
* Shimano HG
* material: aluminium
* Tubeless ready (tubeless tape and valves included) |
|---|
|
